Light Gauge Steel Structures
Loft-Added Layer
Loft Construction Method
Loft Construction Steps
Decorative Surface (Structural Board + Wood Floor or Floor Tile)
Prefabricated keel to ensure floor flatness.
18mm OSB Board and Fireproof drywall ceiling.
Install Ring Beams and Elastic Wires
Begin by securing the ring beams and tensioning the elastic wires as required.Layout Side Keels
Mark and position the side keels, ensuring they are aligned accurately.Install Special Loft Beam Keel
Set up the loft beam keel, ensuring it is fixed and stable.Lay Cable Pipelines
Route and secure the cable pipelines as per the design layout.Install 18mm Oolong Board on Beam Keel
Fix the 18mm Oolong board securely onto the beam keel.Apply 1.5mm Waterproof Coating
Lay the 1.5mm waterproof membrane/coating over the appropriate surface to ensure proper sealing.
Plans and Layout

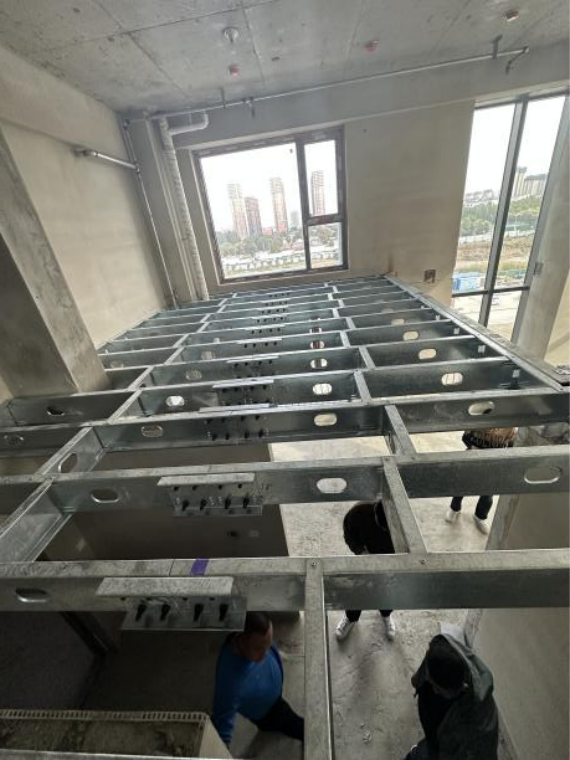

Loft Apartment Mezzanine System
Key Features
Built on years of expertise in prefabricated building materials, our loft mezzanine system has evolved through in-depth research, earning strong market acclaim.
Cost-Efficient & Space-Saving:
Our fully assembled system integrates a special keel and no-ceiling system, reducing thickness by 40% (90-230mm) and cutting costs by 1/3 compared to traditional methods. Installation time is reduced by 2/3.High Strength & Rapid Production:
Made from cold-rolled $350 galvanized steel, the structure offers superior load distribution and reduced vibration, exceeding standard comfort levels. With lightweight materials (50kg/m²), it reduces self-weight by 70%. Components are standardized and customizable for fast production and delivery.Easy Installation & Durability:
Designed for maintenance-free use up to 70 years, the system uses high-strength, galvanized materials and bolt-based assembly—eliminating welding risks. It’s easy to install, adaptable to site conditions, and ensures high precision.
